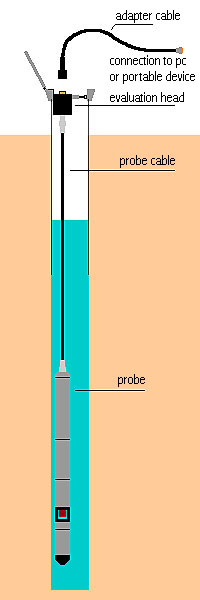

Adapter cable
|
| The adapter cable connects the probe and the evaluating device.
AquiLite-Sonden can be evaluated and programmed either by
a PC/Notebook and an AquiTronic
Software or by a special portable
device. |
 |
 |
|
Evaluation head with integrated
equipment for hanging in
|
| The evaluation head represents the upper end of the
probe cable. It is safe from flood and possess an interface for
evaluating which can be connected with the adapter cable.Die
integriated equipment for hanging in suits to all customary
level caps with a diameter of 2 up to 6 inch. The probe cable
can be delivered as fix or as pluggable version. |
|
 |
|
Probe cable
|
| The probe cable connects the probe with the evaluation head.
It can consist of several parts and be delivered in any lengths.
|
|
 |
Probe
|
the modular probe usually consists of 3 or 4 moduls.
The upper modul is the battery modul (= ATV..).
The second modul is a data logger-modul (=ATL..).
The upper end represents 1 or several measuring moduls,
e.g. for conductivity and/or pressure (= ATM..). |
|
|
